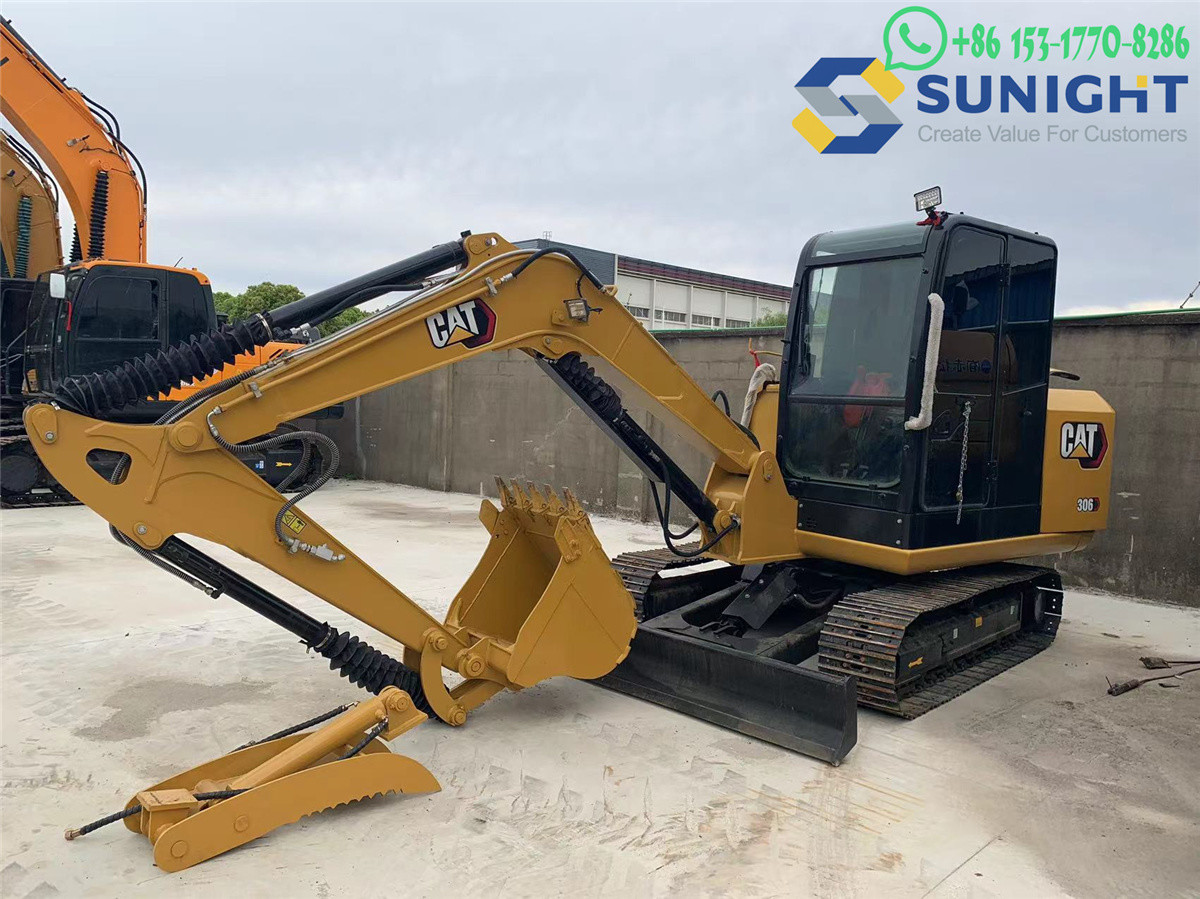

The CAT 306E2 is a compact hydraulic excavator designed for efficient performance in confined spaces. It offers versatility, operator comfort, and advanced technology for various applications, such as construction, landscaping, and utilities.

Key Specifications of CAT 306E2:

Engine:

• Model: Cat C2.4 Turbo
• Type: 4-cylinder, turbocharged, water-cooled diesel engine
• Rated Power: 41.7 kW (55.9 hp) @ 2,400 rpm
• Emission Standard: EPA Tier 4 Final/EU Stage V compliant

Dimensions:

• Operating Weight: 6,285 kg (13,855 lbs)
• Overall Length: 6,050 mm (19.85 ft)
• Overall Width: 1,980 mm (6.5 ft)
• Overall Height: 2,550 mm (8.37 ft)
• Ground Clearance: 340 mm (1.12 ft)

Performance:

• Maximum Digging Depth: 4,110 mm (13.48 ft)
• Maximum Dump Height: 4,495 mm (14.74 ft)
• Maximum Reach at Ground Level: 6,440 mm (21.13 ft)
• Bucket Capacity: 0.22–0.35 m³ (0.29–0.46 yd³)
• Bucket Digging Force: 50.7 kN (11,400 lbf)
• Arm Digging Force: 28.5 kN (6,409 lbf)

Hydraulic System:

• Pump Type: Load-sensing hydraulic system
• Maximum Flow: 140 L/min (37 gal/min)
• Hydraulic Pressure: 245 bar (3,553 psi)

Travel Speed:

• High Speed: 4.8 km/h (3 mph)
• Low Speed: 3.0 km/h (1.86 mph)

Swing:

• Swing Speed: 10.5 rpm

Fuel and Fluid Capacities:

• Fuel Tank: 125 liters (33 gallons)
• Hydraulic Oil Tank: 85 liters (22.5 gallons)

Features of CAT 306E2:

1. Compact Design:

   • Ideal for tight spaces with a zero or reduced tail swing radius.
   • Enhanced maneuverability in urban or confined areas.

2. Operator Comfort:

   • Spacious and air-conditioned cabin with ergonomic controls and excellent visibility.
   • Adjustable seat and advanced monitoring system for reduced fatigue.

3. Durable Construction:

   • Reinforced boom and arm for enhanced durability.
   • Designed to handle demanding applications and rugged environments.

4. Fuel Efficiency:

   • Advanced engine technology ensures reduced fuel consumption without compromising performance.

5. Versatility:

   • Compatible with various attachments like buckets, hammers, and augers for diverse tasks.

6. Easy Maintenance:

   • Ground-level access to maintenance points for quick servicing.
   • Centralized grease points and extended service intervals reduce downtime.

Applications:

• Construction: Site preparation, trenching, and material handling.
• Landscaping: Grading, leveling, and planting.
• Utilities: Installing pipelines and cables.
• Agriculture: Irrigation and field preparation.

We would like to personally thank you for allowing Jiangchun Trading Co., Ltd. to present our introduction, Shanghai Sunight Machinery Co., Ltd. is one of the bigger supplier and buyer of used machine in Shanghai,China.

We have a range of used construction equipment available. Everything from excavators, bulldozers, motor graders, Soil Compactors, wheel loaders and dumper trucks.

We are also have great demand on used Excavator, bulldozer, loader, grader from all over the world.

The excavator is one of the most versatile pieces of construction equipment. The different uses for the excavator include: digging, demolition, dredging, lifting and moving. Each year hundreds of used excavators are shipped to all regions of the world, especially Africa, South East Asia and the Middle East.

As for excavator, the most popular model range from Cat E70B,E120B,E200B, 320B, 320C, 320D, 336D, Komatsu PC35MR, 55MR, 60-7,78US, 120-6, 128US, PC200-6, PC220-6, PC220-7, PC300-7; Hitachi EX60, EX100, EX120, EX200, EX200-3, ZX200-6. Kobelco SK03, SK07, SK200-6, SK200-8;

As for the bulldozer, the popular model includes Cat D5C,D5G, D5K, D6D, D6G, D7G,D7H,D8K; Komatsu D65, D85-18, D155; Shantui SD13, SD16, SD22, SD32

As for the roller, the popular model includes Dynapac CA25D, 30D; Bomag BW202AD-2, BW219D-2, BW217D-2, Ingersoll rand SD100D, SD175D.

As for the grader, the popular model includes Cat 12G, 140G, 140H, 140K; Komatsu GD511A, GD611A-1

We also purchase and sell the wheel loader as below model, Cat 950C,966D, 966G, 966H; Komatsu WA320-1, 320-5, 380-3, 470-3.
