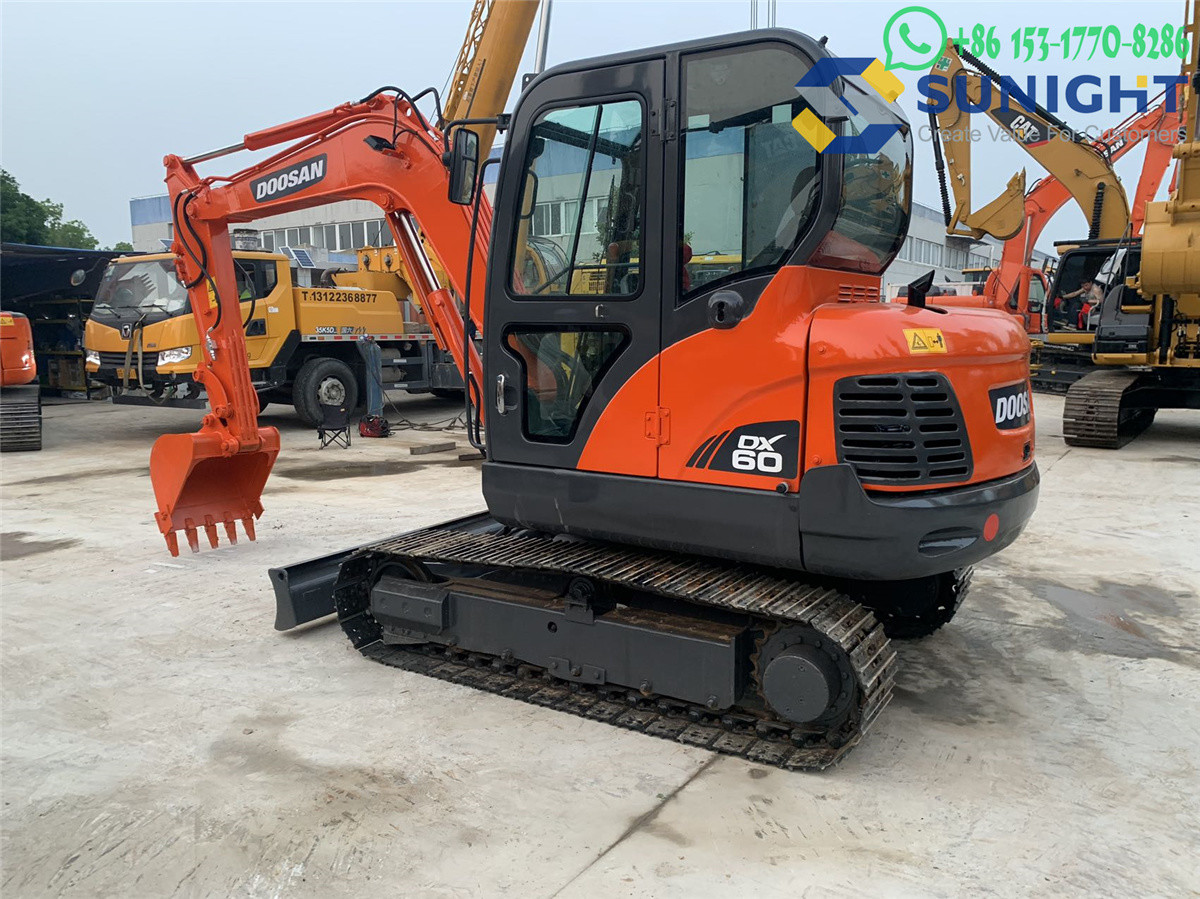

The Doosan DX60 is a compact excavator designed for a wide range of applications, including construction, landscaping, utility work, and more. Known for its reliability, fuel efficiency, and operator comfort, the DX60 is a popular choice for smaller-scale operations requiring precision and versatility.

Doosan DX60 Specifications

Engine

• Model: Yanmar 4TNV98
• Type: 4-cylinder, water-cooled, diesel engine
• Displacement: 3.319 liters (203 cubic inches)
• Gross Power: 58 hp (43 kW) at 2,200 rpm
• Net Power: Approximately 54 hp (40 kW)
• Emission Compliance: Tier III / Tier IV (depending on the variant and market)

Operating Weight

• Weight: Approximately 5,600–6,000 kg (12,345–13,228 lbs)

Dimensions

• Length: 5,850 mm (230.3 in)
• Width: 1,980 mm (77.9 in)
• Height (to top of cab): 2,550 mm (100.4 in)
• Ground Clearance: 340 mm (13.4 in)
• Tail Swing Radius: Compact, for efficient operation in tight spaces

Performance

• Max Travel Speed (High): 4.2 km/h (2.6 mph)
• Max Travel Speed (Low): 2.4 km/h (1.5 mph)
• Swing Speed: 9.5 rpm
• Bucket Breakout Force: 43.4 kN (9,760 lbf)
• Arm Digging Force: 29.5 kN (6,630 lbf)

Undercarriage

• Track Type: Steel or rubber track options
• Track Width: 400 mm (15.7 in)
• Track Length: 2,520 mm (99.2 in)
• Ground Pressure: Approximately 30.4 kPa (4.4 psi)

Hydraulics

• Pump Type: Variable displacement piston pump
• Max Flow: 132 liters per minute (34.8 gpm)
• Hydraulic System Pressure: 25,000 kPa (3,625 psi)

Bucket

• Standard Bucket Capacity: 0.18–0.22 m³ (0.24–0.29 yd³), depending on the configuration
• Max Digging Depth: 3,870 mm (152.4 in)
• Max Reach at Ground Level: 6,400 mm (252 in)
• Max Dump Height: 4,150 mm (163.4 in)

Fuel Tank

• Capacity: 120 liters (31.7 gallons)

Key Features

1. Fuel Efficiency: Equipped with a high-performance Yanmar engine for low fuel consumption and high torque.
2. Compact Design: Perfect for tight spaces and urban environments.

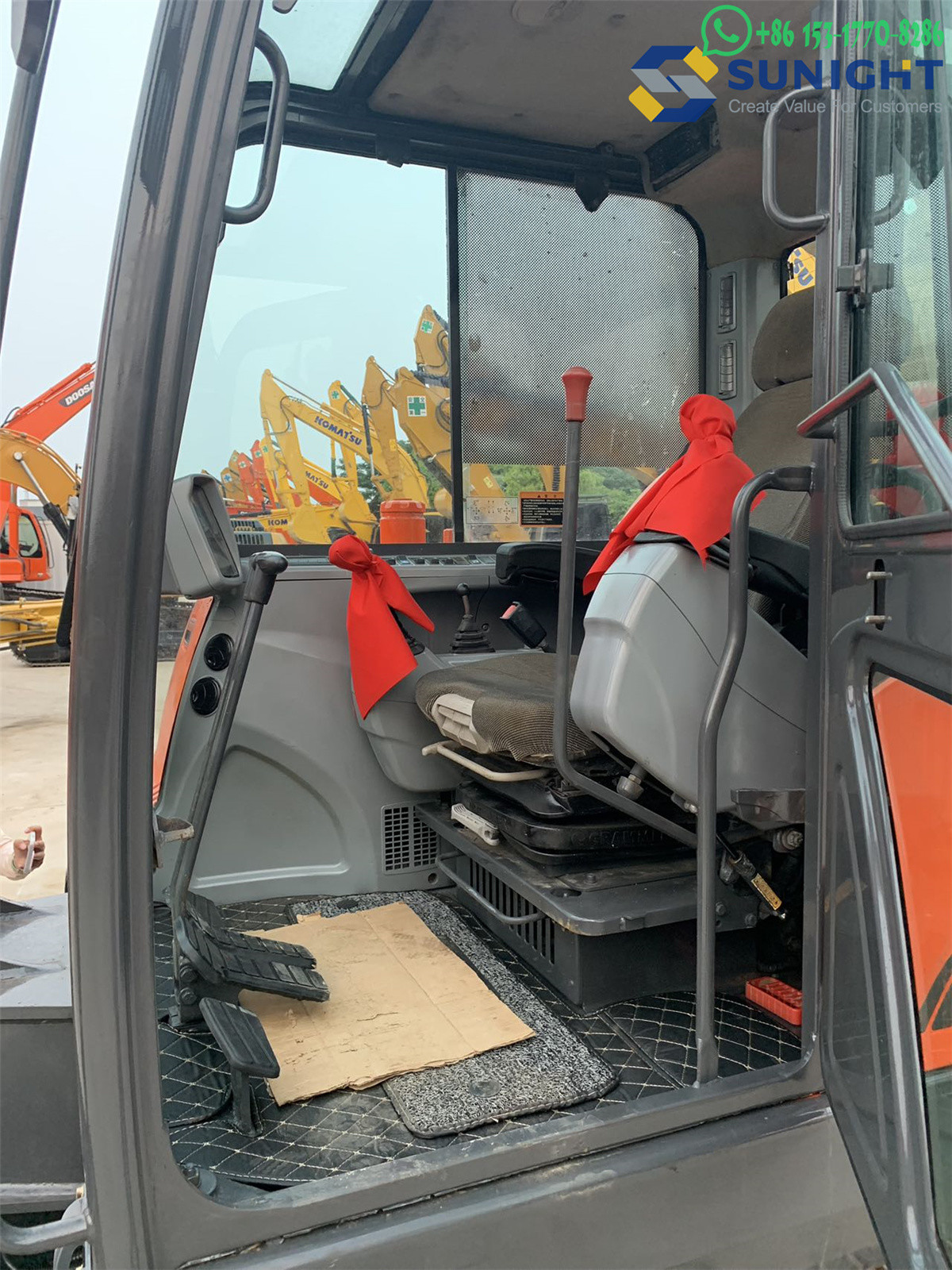

3. Enhanced Operator Comfort: Spacious cab with ergonomic controls, excellent visibility, and climate control options.
4. Advanced Hydraulics: Provides precise control and efficiency for multiple operations.
5. Durability: Reinforced undercarriage and high-quality components ensure long-term reliability.
6. Versatility: Compatible with a variety of attachments, such as buckets, augers, and breakers.

Applications

• Construction: Site preparation, trenching, and material handling.
• Landscaping: Grading, digging, and planting.
• Utility Work: Laying pipes and cables, roadwork, and drainage.
• Agriculture: Farm infrastructure projects and material handling.

We would like to personally thank you for allowing Jiangchun Trading Co., Ltd. to present our introduction, Shanghai Sunight Machinery Co., Ltd. is one of the bigger supplier and buyer of used machine in Shanghai,China.

We have a range of used construction equipment available. Everything from excavators, bulldozers, motor graders, Soil Compactors, wheel loaders and dumper trucks.

We are also have great demand on used Excavator, bulldozer, loader, grader from all over the world.

The excavator is one of the most versatile pieces of construction equipment. The different uses for the excavator include: digging, demolition, dredging, lifting and moving. Each year hundreds of used excavators are shipped to all regions of the world, especially Africa, South East Asia and the Middle East.

As for excavator, the most popular model range from Cat E70B,E120B,E200B, 320B, 320C, 320D, 336D, Komatsu PC35MR, 55MR, 60-7,78US, 120-6, 128US, PC200-6, PC220-6, PC220-7, PC300-7; Hitachi EX60, EX100, EX120, EX200, EX200-3, ZX200-6. Kobelco SK03, SK07, SK200-6, SK200-8;

As for the bulldozer, the popular model includes Cat D5C,D5G, D5K, D6D, D6G, D7G,D7H,D8K; Komatsu D65, D85-18, D155; Shantui SD13, SD16, SD22, SD32

As for the roller, the popular model includes Dynapac CA25D, 30D; Bomag BW202AD-2, BW219D-2, BW217D-2, Ingersoll rand SD100D, SD175D.

As for the grader, the popular model includes Cat 12G, 140G, 140H, 140K; Komatsu GD511A, GD611A-1

We also purchase and sell the wheel loader as below model, Cat 950C,966D, 966G, 966H; Komatsu WA320-1, 320-5, 380-3, 470-3.
