The Komatsu PC220 is a widely used and reliable hydraulic excavator in the 20-25 ton range, designed for various heavy-duty construction, mining, and excavation applications. Below are the key specifications and features of the Komatsu PC220:

Komatsu PC220 Key Specifications

Engine:

• Model: Komatsu SAA6D107E-1 or equivalent (varies by model year).
• Power Output: Approx. 123–125 kW (165–170 HP).
• Engine Type: 6-cylinder, turbocharged, and water-cooled diesel engine.
• Emissions Standard: Tier 3/Stage IIIA compliant.

Operating Weight:

• Approx. 23,000–24,000 kg (depending on configuration and attachments).

Dimensions:

• Length: 9,600 mm (with standard boom and arm).
• Width: 3,000 mm.
• Height (Cabin): 3,050 mm.
• Ground Clearance: 450 mm.
• Tail Swing Radius: 2,900 mm.

Performance:

• Max Digging Depth: 6,700–7,200 mm.
• Max Reach at Ground Level: 9,800–10,200 mm.
• Bucket Digging Force: 15,000–16,000 kgf.
• Arm Digging Force: 10,000–11,000 kgf.

Hydraulics:

• System Type: Closed-center load sensing system (CLSS).
• Max Flow: 480 liters/min.
• Auxiliary Hydraulic Flow: Available for attachments.

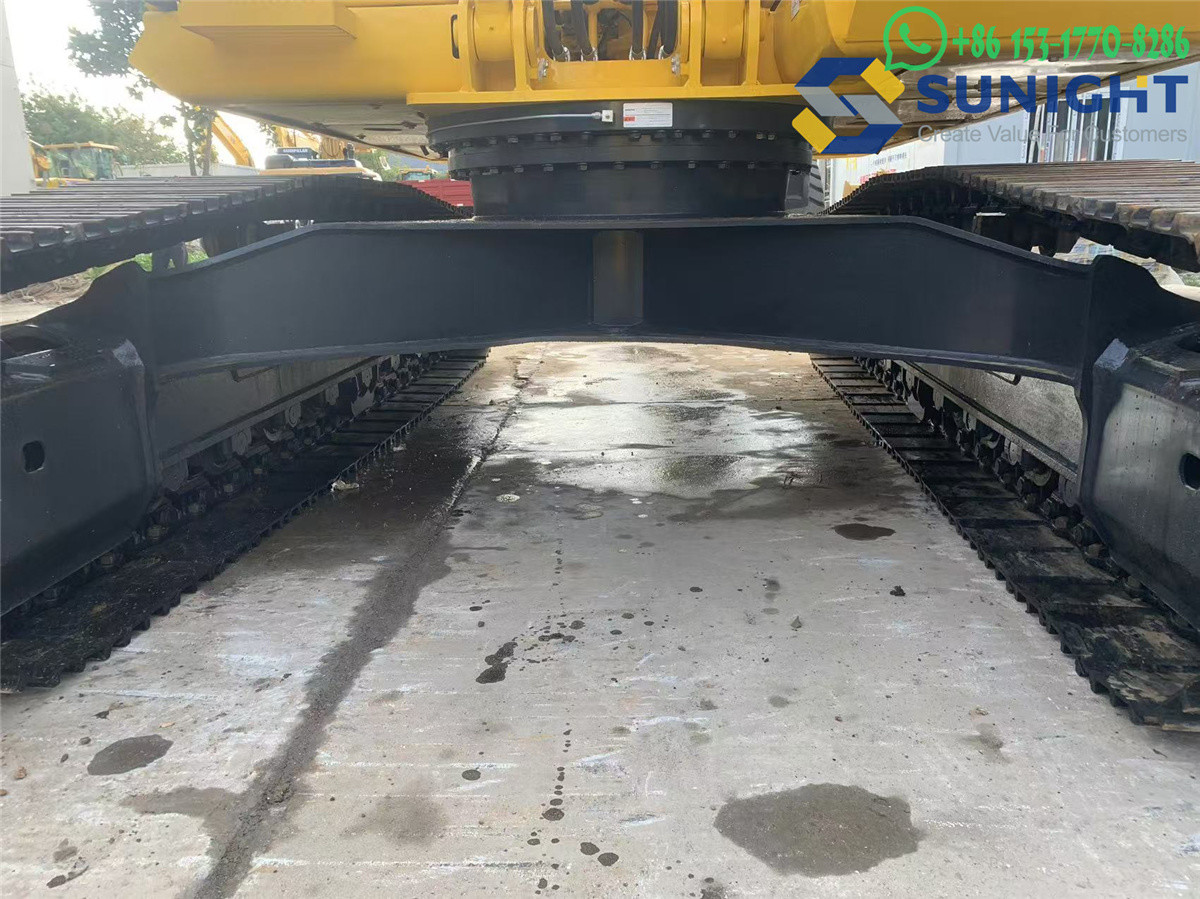

Undercarriage:

• Track Type: Steel or optional rubber pads.
• Track Width: 600–700 mm.
• Ground Pressure: Approx. 0.48–0.52 kg/cm².

Travel Speed:

• Low Speed: 3.2 km/h.
• High Speed: 5.8 km/h.

Fuel and Fluid Capacities:

• Fuel Tank: 400 liters.
• Hydraulic Oil Tank: 240 liters.

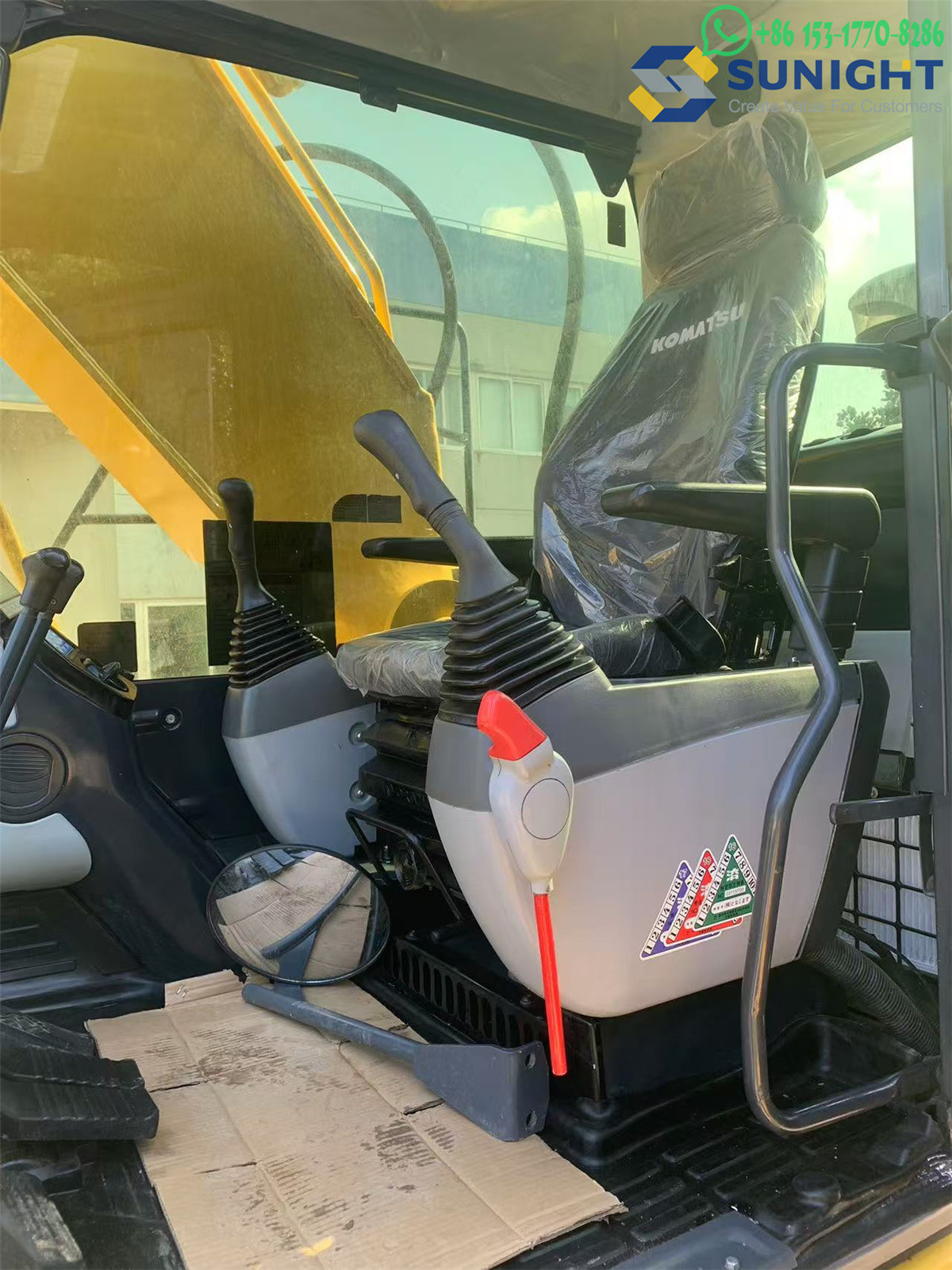

Cabin Features:

• Spacious, ergonomic ROPS/FOPS-certified cabin.
• Advanced hydraulic control for precise operations.
• Enhanced visibility with wide-angle glass panels.
• Climate control and air conditioning (optional).
• Low noise and vibration levels for operator comfort.

Attachments:

• Standard and heavy-duty buckets.
• Hydraulic breakers, augers, grapples, and compactors.
• Long-reach booms and arms (optional).

Applications:

• Heavy earthmoving and excavation.
• Mining and quarry operations.
• Infrastructure projects such as roads and bridges.
• Demolition and material handling.

We would like to personally thank you for allowing Jiangchun Trading Co., Ltd. to present our introduction, Shanghai Sunight Machinery Co., Ltd. is one of the bigger supplier and buyer of used machine in Shanghai,China.

We have a range of used construction equipment available. Everything from excavators, bulldozers, motor graders, Soil Compactors, wheel loaders and dumper trucks.

We are also have great demand on used Excavator, bulldozer, loader, grader from all over the world.

The excavator is one of the most versatile pieces of construction equipment. The different uses for the excavator include: digging, demolition, dredging, lifting and moving. Each year hundreds of used excavators are shipped to all regions of the world, especially Africa, South East Asia and the Middle East.

As for excavator, the most popular model range from Cat E70B,E120B,E200B, 320B, 320C, 320D, 336D, Komatsu PC35MR, 55MR, 60-7,78US, 120-6, 128US, PC200-6, PC220-6, PC220-7, PC300-7; Hitachi EX60, EX100, EX120, EX200, EX200-3, ZX200-6. Kobelco SK03, SK07, SK200-6, SK200-8;

As for the bulldozer, the popular model includes Cat D5C,D5G, D5K, D6D, D6G, D7G,D7H,D8K; Komatsu D65, D85-18, D155; Shantui SD13, SD16, SD22, SD32

As for the roller, the popular model includes Dynapac CA25D, 30D; Bomag BW202AD-2, BW219D-2, BW217D-2, Ingersoll rand SD100D, SD175D.

As for the grader, the popular model includes Cat 12G, 140G, 140H, 140K; Komatsu GD511A, GD611A-1

We also purchase and sell the wheel loader as below model, Cat 950C,966D, 966G, 966H; Komatsu WA320-1, 320-5, 380-3, 470-3.
