The SHANTUI SD22 is a widely used crawler bulldozer known for its robustness and reliability in heavy-duty construction and mining applications. It is designed for tough environments and excels at tasks such as pushing, grading, leveling, and other earthmoving operations.

SHANTUI SD22 Crawler Bulldozer Key Specifications

Engine:

• Model: WD10G178E25 or similar (depending on the production year).
• Power Output: 162 kW (217 HP) at 1,800 rpm.
• Type: Diesel, turbocharged, 6-cylinder, water-cooled engine.
• Emissions Compliance: Meets Tier 2 or Tier 3 (depending on the model year).

Operating Weight:

• Approx. 22,500 kg (varies slightly depending on configuration).

Dimensions:

• Overall Length (with blade): Approx. 5,920 mm.
• Overall Width: Approx. 3,540 mm (standard blade).
• Height (to top of cab): Approx. 3,190 mm.
• Ground Clearance: Approx. 375 mm.
• Track Length on Ground: Approx. 3,080 mm.

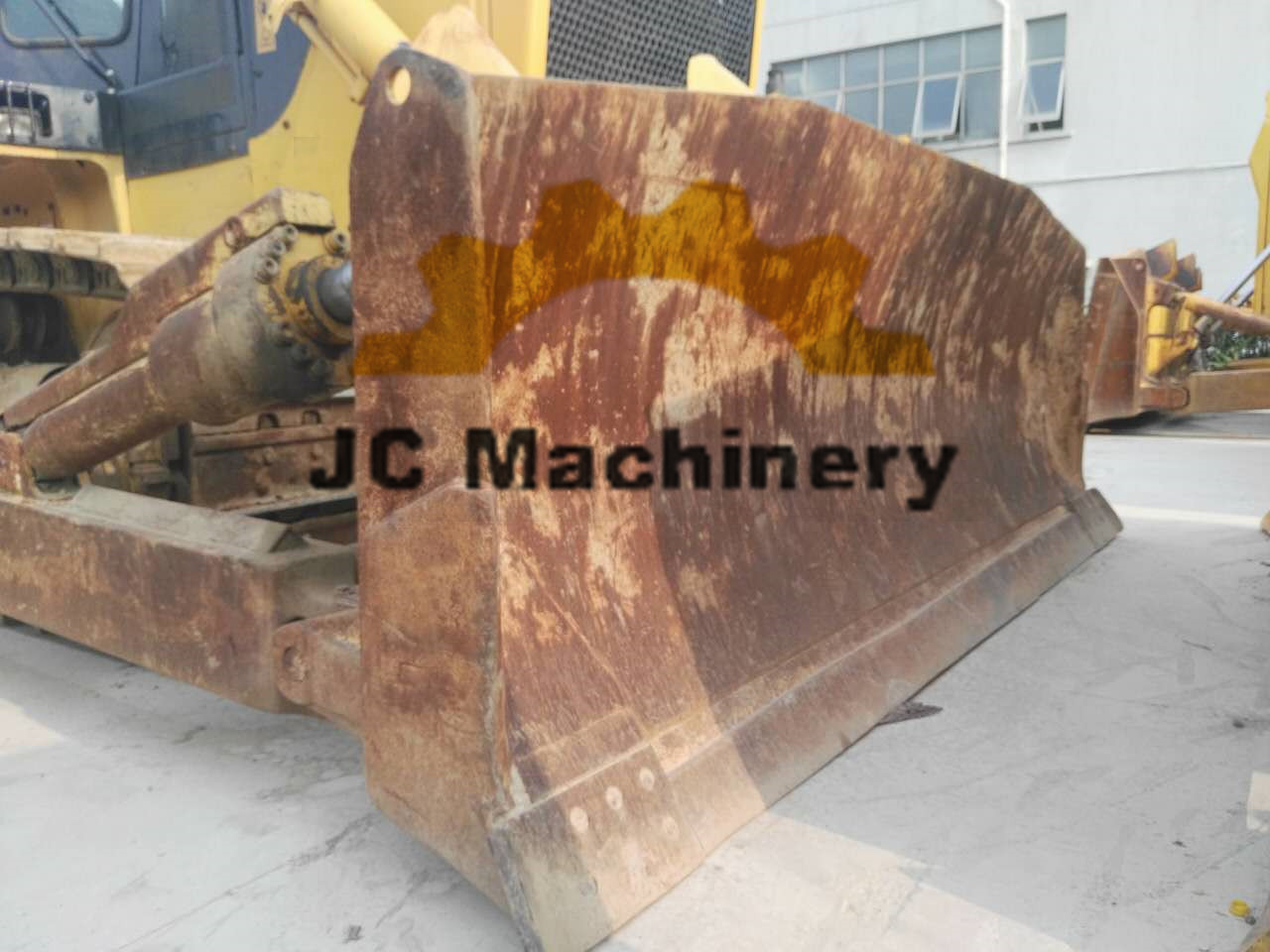

Blade:

• Blade Type: U-blade or Semi-U blade options.
• Blade Width: Approx. 3,520 mm (with standard blade).
• Blade Height: Approx. 1,060 mm.
• Blade Capacity: Approx. 4.2 m³ (depending on the blade type and material handled).

Track and Undercarriage:

• Track Type: Steel tracks with optional rubber pads.
• Track Shoe Width: Approx. 510 mm (varies based on the specific configuration).
• Track Gauge: Approx. 1,980 mm.
• Track Tensioning: Manual or hydraulic track adjustment, depending on model year.

Performance:

• Max Travel Speed: Approx. 11.5 km/h.
• Gradeability: Can climb grades of up to 30% under ideal conditions.
• Ground Pressure: Approx. 0.064 MPa, which makes it effective for soft ground conditions.
• Hydraulic System: Load sensing, closed-center system for efficient operation and better control of the blade.

Hydraulic System:

• Hydraulic Flow Rate: Approx. 180 L/min.
• Operating Pressure: Approx. 280 bar.
• Pump Type: Axial piston pump.

Fuel and Fluid Capacities:

• Fuel Tank Capacity: Approx. 380 liters.
• Hydraulic Oil Tank Capacity: Approx. 140 liters.
• Engine Oil Capacity: Approx. 20 liters.
• Cooling System Capacity: Approx. 30 liters.

Cabin:

• Operator Comfort: The cabin is ROPS/FOPS certified, designed for improved safety and comfort.
• Air Conditioning: Optional, depending on the configuration and model year.
• Visibility: High-visibility glass and a spacious cabin for better operator control.

Other Features:

• Power Shift Transmission: Ensures smoother operations and improved fuel efficiency with multiple forward/reverse gears.
• Heavy-Duty Undercarriage: Designed for durability in tough working environments, such as mining and construction sites.
• Easy Maintenance: Centralized lubrication points, simple engine and hydraulic system layout for easy servicing.

Applications:

• Construction: Ideal for earthmoving, trenching, and site leveling.
• Mining: Suitable for bulk material handling and stripping.
• Land Development: Works well for land clearing, backfilling, and grading.

We would like to personally thank you for allowing Jiangchun Trading Co., Ltd. to present our introduction, Shanghai Sunight Machinery Co., Ltd. is one of the bigger supplier and buyer of used machine in Shanghai,China.

We have a range of used construction equipment available. Everything from excavators, bulldozers, motor graders, Soil Compactors, wheel loaders and dumper trucks.

We are also have great demand on used Excavator, bulldozer, loader, grader from all over the world.

The excavator is one of the most versatile pieces of construction equipment. The different uses for the excavator include: digging, demolition, dredging, lifting and moving. Each year hundreds of used excavators are shipped to all regions of the world, especially Africa, South East Asia and the Middle East.

As for excavator, the most popular model range from Cat E70B,E120B,E200B, 320B, 320C, 320D, 336D, Komatsu PC35MR, 55MR, 60-7,78US, 120-6, 128US, PC200-6, PC220-6, PC220-7, PC300-7; Hitachi EX60, EX100, EX120, EX200, EX200-3, ZX200-6. Kobelco SK03, SK07, SK200-6, SK200-8;

As for the bulldozer, the popular model includes Cat D5C,D5G, D5K, D6D, D6G, D7G,D7H,D8K; Komatsu D65, D85-18, D155; Shantui SD13, SD16, SD22, SD32

As for the roller, the popular model includes Dynapac CA25D, 30D; Bomag BW202AD-2, BW219D-2, BW217D-2, Ingersoll rand SD100D, SD175D.

As for the grader, the popular model includes Cat 12G, 140G, 140H, 140K; Komatsu GD511A, GD611A-1

We also purchase and sell the wheel loader as below model, Cat 950C,966D, 966G, 966H; Komatsu WA320-1, 320-5, 380-3, 470-3.
